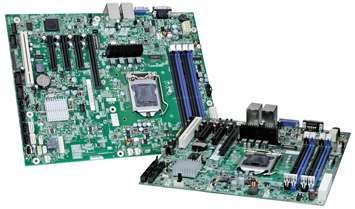

| Board order code | S1200BTL | S1200BTS |
|---|
| Form factor | ATX (12" x 9.6") | uATX (9.6" x 9.6") |
|---|
| Processor support | |
|---|
| Chipset | Intel® C204 chipset | Intel® C202 chipset |
|---|
| Memory | 4 DDR3 DIMM sockets (Unbuffered)
- 2 channel native (1066/1333MHz)
|
|---|
| Total slots | - One PCI Express* 2.0 x8 slot
(x16 mechanical) - One PCI Express 2.0 x8 slot
(x8 mechanical) - One PCI Express 2.0 x4 slot
(x8 mechanical) - One PCI Express x4 slot
(x8 mechanical) - One PCI Express x1 slot
(x1 mechanical) - One PCI 32/33 (5V) slot
| - One PCI Express 2.0 x8 slot
(x16 mechanical) - One PCI Express 2.0 x8 slot
(x8 mechanical) - One PCI Express x4 slot
(x8 mechanical) - One PCI 32/33 (5V) slot
|
|---|
| Storage | - 6 SATA ports (2x6 Gbps, and 4x3 Gbps) via Intel C204 chipset
with Intel® Embedded Server RAID Technology and Intel®
RST - Modular 4 port SAS and SAS RAID options via Intel® I/O Expansion Module
| - 6 SATA ports (6x3 Gbps) via Intel® C202 chipset
with Intel Embedded Server RAID Technology and Intel RST
|
|---|
| Intel® RAID support | - Integrated SATA RAID levels 0/1/5/10
- Optional SW RAID 5 with activation key for Intel® SAS Module
- Optional internal SAS RAID module available
| - Integrated SATA RAID levels 0/1/5/10
|
|---|
| Integrated LAN | Embedded Intel® Dual Gigabit Controller 82574L and 82578DM |
|---|
| Integrated graphics | Server Engine* LLC Pilot II* Controller with 64 MB DDR2 memory, 8MB allocated to graphics |
|---|
| Management and security | - Integrated IPMI 2.0 baseboard management controller
- Optional Intel® Trusted Platform Module (Intel® TPM)1
| |
|---|
